China Stud Link Anchor Chains Supplier

A Stud link Anchor Chain is a type of heavy-duty marine chain, it’s frequently used in ships and offshore installations to firmly fasten the anchor to the vessel. In contrast to regular chains. Stundlink chains have a central stud across each link, which significantly increases stability, prevents kinking, and distributes the load more evenly. We at Zhoushan Zhongnan Anchor Chain CO., LTD. are pleased to be one of the top Anchor Chain manufacturers and suppliers in China, offering stud link anchor chains at competitive prices with high quality.

Main Features

Strong construction, improved fatigue resistance and exceptional load-bearing capacity define the Stud link Anchor Chain. Crafted and tested in accordance with international standards(ISO,IACS), each chain is made from marine-grade alloy steel and comes in diameters ranging from 16mm to 162mm, guaranteeing worldwide compliance. With optional surface treatments including hot-dip galvanization and bitumen coating available.

Test load is shown below:

What makes Stud link Anchor Chain different from Studless Anchor Chain?

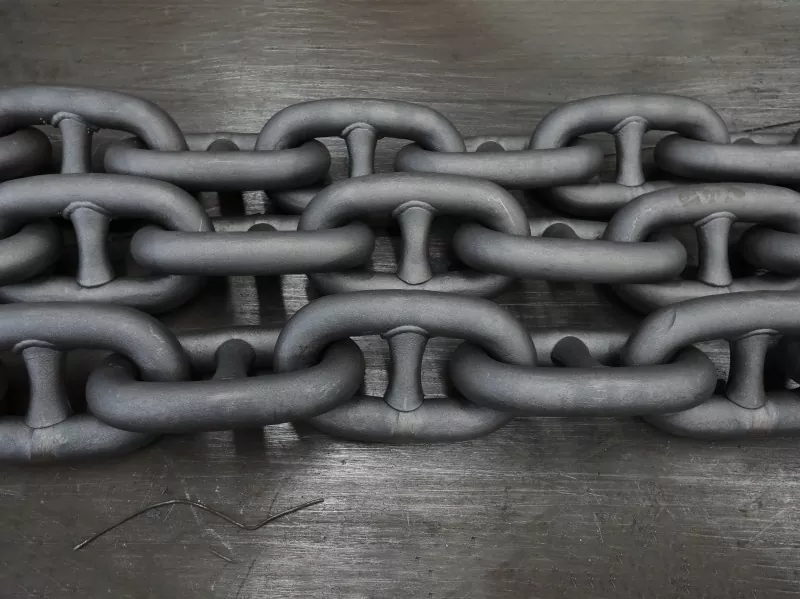

The stud’s presence is the primary distinction. A bar across the middle of each link in a stud link chain helps the chain keep its shape and avoid twisting under load. This design ensures smoother passage over gypsy wheels and windlasses, improves breaking strength and significantly reduces wear between links. Studless anchor chains, on the other hand, are more flexible and lighter, making them a preferred choice in situations where weight reduction is essential.

When should you use Stud link Anchor Chain and when Studless Anchor Chain?

Stud link Anchor Chains are recommended for heavy-duty applications where chain integrity and high load capacity are essential, such as naval vessels, FPSOs, offshore rigs and oceangoing ships. They are built to resist severe weather, long journeys and powerful currents. Studless anchor chains are more frequently used in offshore platforms, coastal shipping and smaller ships where weight and flexibility are more advantageous.

What type of Stud link Anchor Chains can we offer?

Our product line covers both Stud link Anchor Chains for vessels, which are frequently used to connect anchors and guarantee the safe mooring of merchant ships, tankers, and naval fleets, as well as Stud link Mooring Chains, made specifically for offshore platforms, floating production systems, and marine engineering projects where long term station-keeping is essential.
