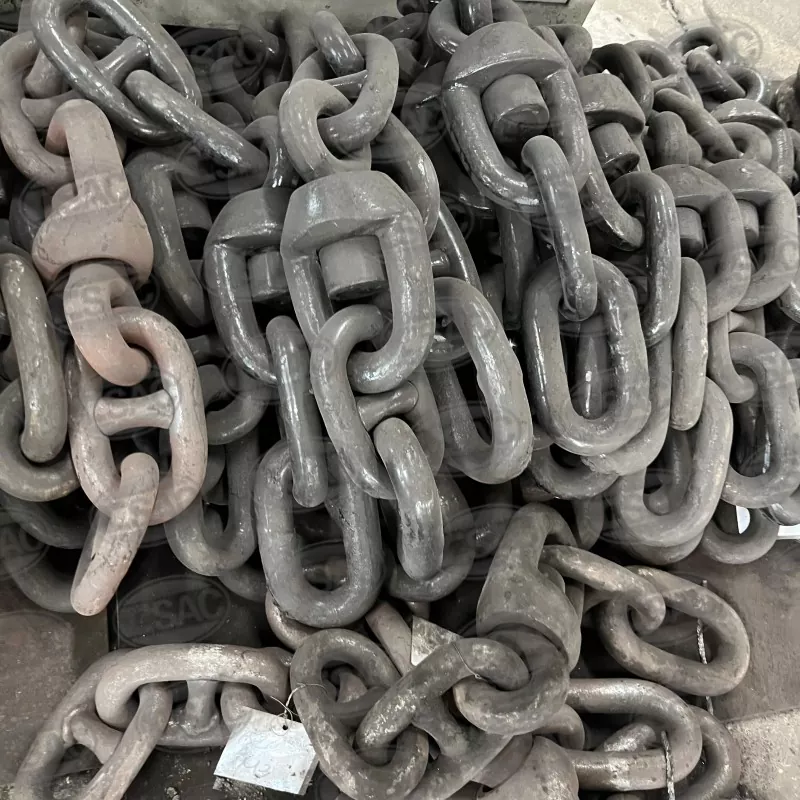

4-Link Swivel Forerunner

The 4-Link Swivel Forerunner from CSAC Chain supplier is a specialized chain assembly consisting of a central swivel mechanism integrated with specific link types. Its primary function is to eliminate torsional stress that builds up when a vessel rotates due to wind, currents, or tidal changes. By allowing the anchor chain to rotate freely under load, it maintains the structural integrity of the entire mooring system.

Component Configuration

The standard structural unit of a CSAC Chain swivel assembly follows a precise sequence to ensure compatibility with standard marine hardware:

• E (End Link): Connects to the anchor shackle.
• EL (Enlarged Link): Provides a transition in size between the end link and the swivel.
• SW (Swivel Body): The core rotating component.
• EL (Enlarged Link): Second transition link for balanced load distribution.
• C (Connecting Link): Joins the assembly to the main stud link anchor chain.

Technical Specifications and Parameters

As a professional manufacturer, CSAC Chain produces the 4-Link Swivel Forerunner in a wide range of sizes to accommodate various vessel tonnages and mooring requirements.

Core Advantages and Technical Excellence

1. Torsional Stress Reduction

The integrated swivel body in the 4-Link Swivel Forerunner allows for 360-degree rotation under high tension. This capability is essential for preventing "chain knots" which can lead to equipment failure or damage to the windlass.

2. Enhanced Durability and Material Quality

Unlike standard cast components, CSAC Chain utilizes forged marine-grade steel. The forging process, combined with controlled heat treatment, enhances the grain structure of the metal, resulting in superior fatigue resistance and impact toughness in sub-zero or high-stress environments.

3. Precision Engineering vs. Conventional Swivels

Applications of the 4-Link Swivel Forerunner

• Commercial Shipping: Essential for bulk carriers, tankers, and container ships operating in deep-water ports.
• Offshore Engineering: Used in mooring systems for floating production storage and offloading (FPSO) units and drilling rigs.
• Naval Applications: Provides secure anchoring for defense vessels requiring high-reliability hardware.
• Shipyard Maintenance: A standard replacement part during dry-docking to ensure the longevity of the vessel's ground tackle.

Brand Authority: Zhoushan Zhongnan Anchor Chain Co., Ltd.

Established in 1986 , Zhoushan Zhongnan Anchor Chain Co., Ltd. (operating under the brand CSAC Chain ) is a national high-tech enterprise located in Zhoushan, adjacent to the Ningbo-Zhoushan Port—the world’s busiest port by cargo tonnage.

Manufacturing & Research Power

• Facilities: Spanning 18,000 square meters, equipped with advanced flash-butt welding and forging lines.
• Innovation: Holder of 17 domestic and international patents, including a specialized Luxembourg patent for an "Automatic Production Device Of Chain Stud."
• Strategic Partnerships: Collaborative research with Jiangsu University of Science and Technology via the "Research Institute of High-Strength Marine Cable Intelligent Control Optimal Design."
• Proven Track Record: Over 30 years of development as a key backbone enterprise in the provincial shipbuilding supporting industry.
