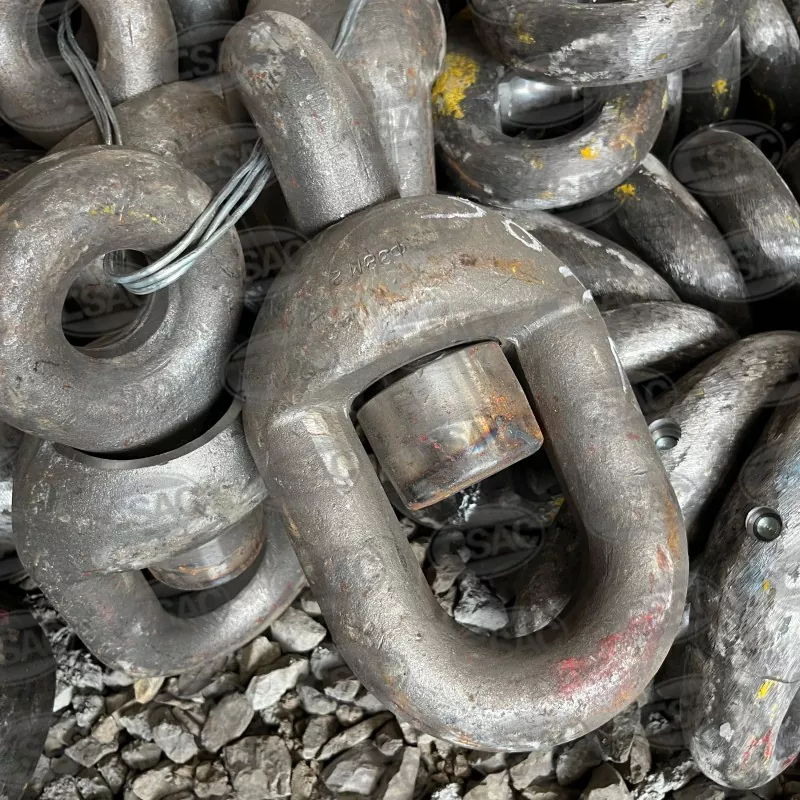

The Swivel Forerunner (Swivel with 3 links) is a core accessory component designed to connect an anchor to a stud-link anchor chain. It consists of an E-link, an SW swivel body, an EL-link, and a C-link (E + SW + EL + C). By facilitating the flexible rotation of the swivel body, it enables the anchor chain to rotate freely during anchoring operations, thereby preventing damage caused by twisting and ensuring the stable operation of the entire anchoring system. CSAC Chain’s Swivel Forerunner features an integrated assembly design that ensures convenient installation; compatible with both Grade 2 and Grade 3 anchor chains, it serves as an indispensable critical component in the anchoring systems of vessels, offshore platforms, and naval equipment.
| Parameter Name | Specification |
|---|---|
| Product Name | Swivel Forerunner (Swivel with 3 links) |
| Model | E + SW + EL + C |
| Diameter Range | 12.5mm - 122mm |
| Material | High-grade steel |
| Surface Treatment | Hot-dip galvanizing, bituminous paint |
| Standards Compliance | ISO, IACS, CB/T |
| Certifications | ABS, BV, CCS, DNV, LR, NK, KR, RINA, RS |
| Application | Vessels, offshore platforms, naval applications |
The Swivel Forerunner (Swivel with 3 links) employs the classic structural configuration of E + SW + EL + C. The connection between the three chain links and the swivel body is engineered with precision and uniform clearance, enabling flexible 360° rotation. This effectively dissipates torsional stress within the anchor chain during anchoring operations, preventing knotting, abrasion, or breakage, and thereby ensuring the safe and reliable operation of the entire anchoring system. Our product's structural design has undergone multiple rounds of optimization; specifically, the junctions between the chain links and the swivel body feature a curved transition design to minimize stress concentration and enhance the product's overall structural integrity.
We select high-quality steel as our raw material, subjecting it to rigorous material inspections to ensure that its strength, toughness, and corrosion resistance meet or exceed industry standards. During the manufacturing process, we utilize advanced forging and heat treatment techniques—integrated with patented automatic stud-link chain production equipment from Luxembourg—to achieve precise machining of the chain links and swivel body, maintaining dimensional tolerances within a strictly controlled range. For surface protection, we employ either hot-dip galvanizing or bituminous coating processes.
Leveraging our joint R&D institute established in collaboration with the Jiangsu University of Science and Technology, we continuously optimize the technical performance of the Swivel Forerunner (Swivel with 3 links). Through comprehensive structural mechanics analysis and simulation testing, we have significantly enhanced the product's load-bearing capacity and fatigue resistance. The swivel body features a precision bearing design that ensures smooth, unhindered rotation, maintaining stable performance throughout its long-term service life. Furthermore, we have established a comprehensive product testing system; prior to shipment, every batch of Swivel Forerunners undergoes rigorous tensile testing, rotational performance testing, and corrosion resistance testing to guarantee that product quality meets all applicable standards.
1. Before installation, inspect the physical condition of the Swivel Forerunner (Swivel with 3 links) to confirm that there is no damage or deformation, that the chain links are securely connected to the swivel body, and that the swivel rotates smoothly.
2. Based on the specifications of the anchor chain, correctly connect the Swivel Forerunner (Swivel with 3 links) between the anchor and the anchor chain, ensuring that the connection points are secure and free of any looseness.
3. Upon completion of installation, perform a test run to check the rotation of the swivel body; confirm that there is no jamming or abnormal noise, that the anchor chain runs smoothly, and that there is no twisting.
4. During the installation process, strictly adhere to the installation standards for the vessel's anchoring system to prevent product damage or safety hazards resulting from improper installation.
To extend the service life of the Swivel Forerunner (Swivel with 3 links) and ensure its stable operation, regular maintenance is recommended. The specific key points are as follows:
1. Periodically inspect the product's exterior to check the condition of the surface coating and to look for signs of corrosion or wear. If any damage to the coating is detected, perform touch-up repairs promptly.
2. Periodically inspect the connection points between the chain links and the swivel body to confirm that there is no looseness or deformation. If looseness is detected, tighten the connections immediately; if deformation is detected, replace the product immediately.
3. Periodically lubricate the swivel body using a grease suitable for marine environments to ensure smooth rotation and minimize wear.
4. During anchoring operations, avoid subjecting the anchor chain to excessive force; prevent the Swivel Forerunner (Swivel with 3 links) from being subjected to tensile loads exceeding its rated load capacity, which could lead to product damage.
5. Periodically conduct comprehensive inspections of the product—including tensile testing and rotational performance testing—to identify potential issues in a timely manner and prevent operational failures.
