Kenter Shackle

Definition & Function

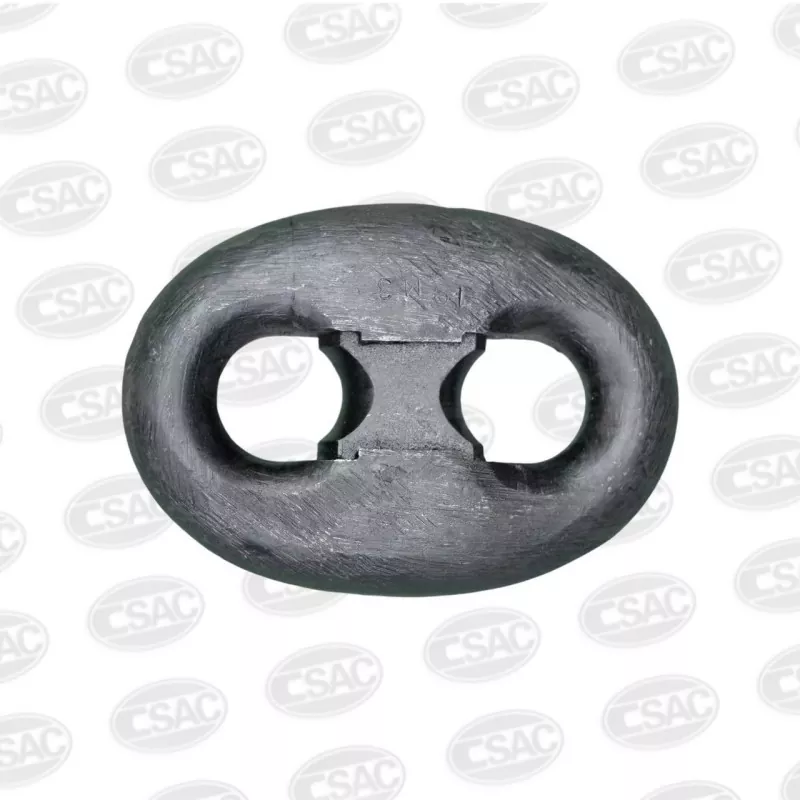

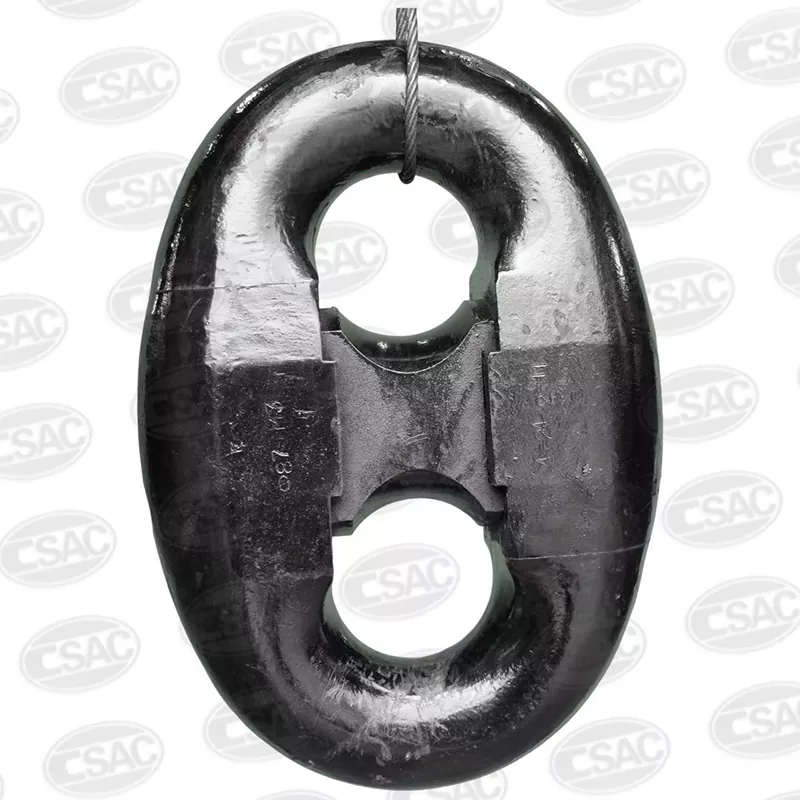

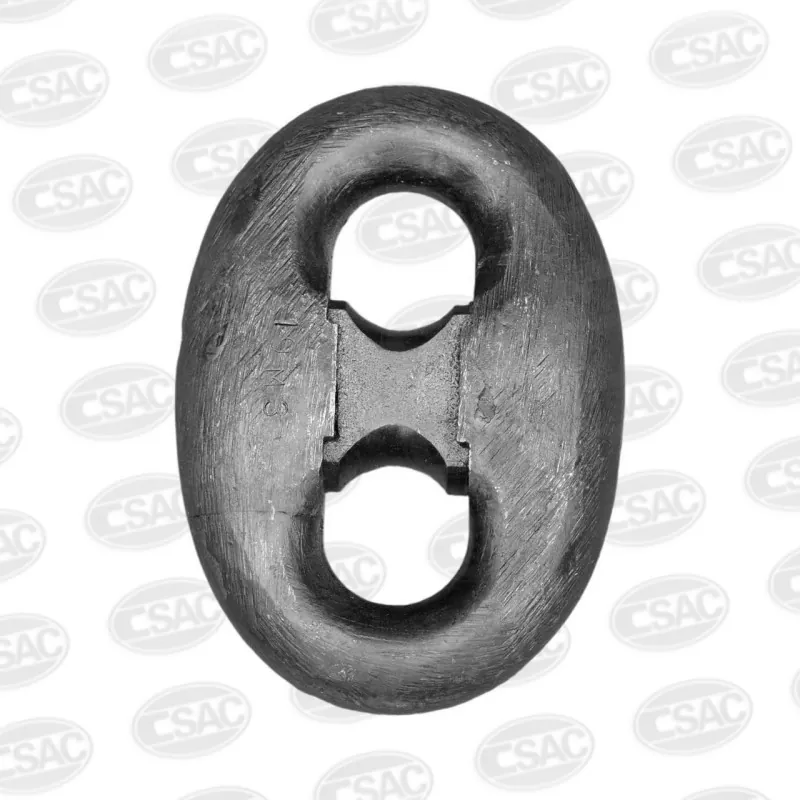

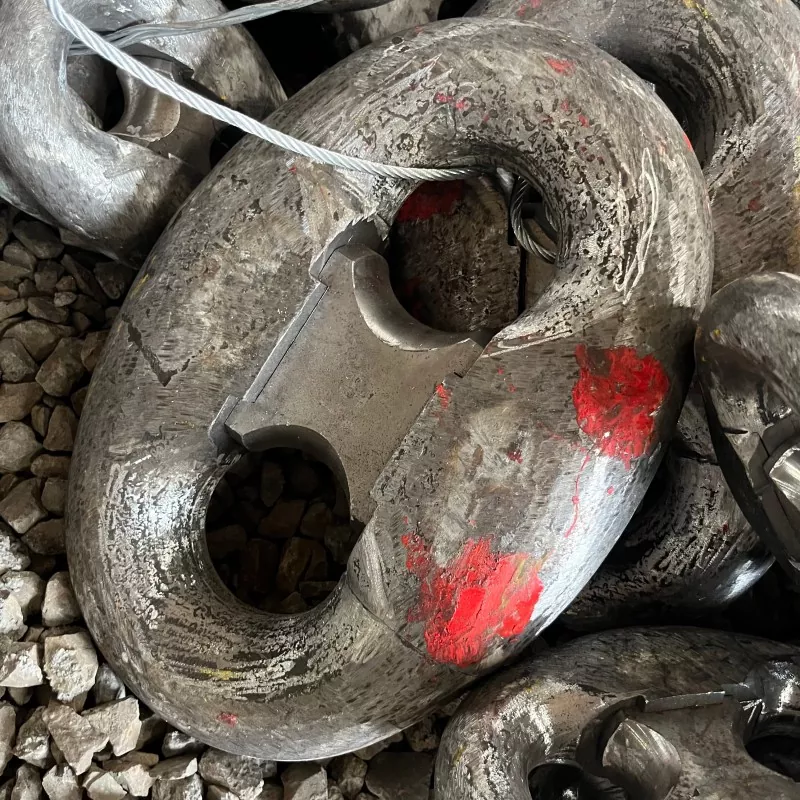

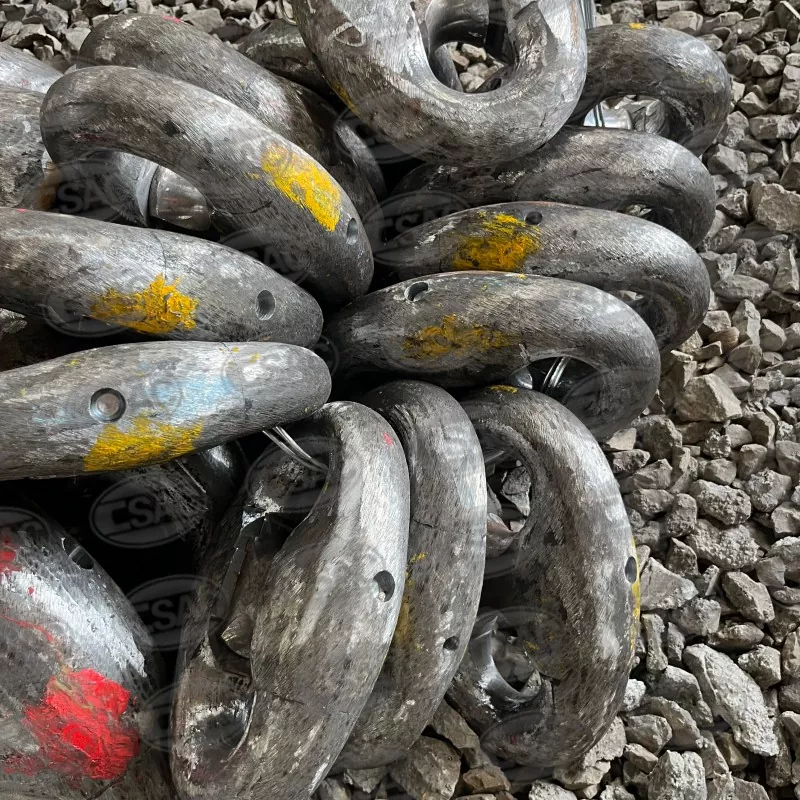

A Kenter Shackle is a two-part D-shaped marine fitting that securely connects two chain ends via a taper pin and chock mechanism. Its reversible design enables rapid assembly and disassembly of chains while maintaining alignment under heavy loads. This type of shackle is essential in mooring systems, offshore platforms, FPSOs, and floating renewable energy installations.

Core Advantages

• High-Strength Steel: Ensures maximum load capacity for marine operations.
• Quick Connection: Two-part D-shaped halves with taper pin for fast, reversible assembly.
• Marine-Grade Durability: Resistant to corrosion and fatigue in harsh seawater environments.
• Customizable Surface Treatment: Black bitumen coating or hot-dip galvanizing available.

Technical Specifications

Below are standard technical specifications for CSAC Chain Kenter Shackles:

Applications & Case Examples

• Offshore Mooring Systems: Connects studless or stud anchor chains to mooring lines on FPSOs and semi-submersible platforms.
• Port Operations: Secures heavy chains for ship-to-shore mooring and floating dock anchoring.
• Floating Renewable Energy: Connects chains and mooring lines for offshore wind turbines.
• Case Example: CSAC Chain Kenter Shackles installed on a North Sea FPSO mooring system ensured reliable connections under 20+ year service projections.

Certification & Quality Assurance

All CSAC Chain Kenter Shackles are tested to comply with international marine standards.

• Certifications: CCS, BV, DNV, ABS, NK, LR, RS, KR, RINA
• Manufacturing Standards: ISO 1704, IACS W22, API offshore standards
• Quality Control: Material spectral analysis, full proof and break load testing, ultrasonic (UT) and magnetic particle (MT) inspection to ensure defect-free construction.

Why Choose CSAC Chain?

Technical Advantage

Deep cooperation with Jiangsu University of Science and Technology allows us to optimize shackle design for improved fatigue resistance and marine performance.

Manufacturing Strength

Automated forging and precision machining ensure consistent tolerances across the full 14 mm–122 mm range.

Design Optimization

The two-part D-shaped design with taper pin enables fast assembly, reduces misalignment, and provides secure, reversible connections.

After-Sales Service

• Technical Support: Assistance with chain-shackle compatibility and selection.
• Installation Guidance: Step-by-step deployment instructions and accessory recommendations.
• Maintenance: Long-term inspection guidance for wear and corrosion.
• Sample & Testing Support: Available on request to validate fit and performance.

Packaging & Delivery

• Protective Coating: Black bitumen or hot-dip galvanizing to prevent corrosion during transport and storage.
• Logistics: Leveraging proximity to Ningbo-Zhoushan Port for container, frame, or bulk shipping worldwide.

FAQ

• Q: Can the Kenter Shackle be customized for specific chain diameters or lengths?
  A: Yes, CSAC Chain provides OEM customization for diameter, proof/breaking load, and surface treatment requirements.
• Q: How does a Kenter Shackle differ from a traditional bow shackle?
  A: The two-part D-shaped design allows rapid, reversible assembly of two chain ends, whereas traditional bow shackles are fixed and require manual pin insertion.
• Q: What is the service life of these shackles?
  A: With proper maintenance, CSAC Chain Kenter Shackles can serve in marine operations for decades, backed by rigorous testing and quality assurance.
